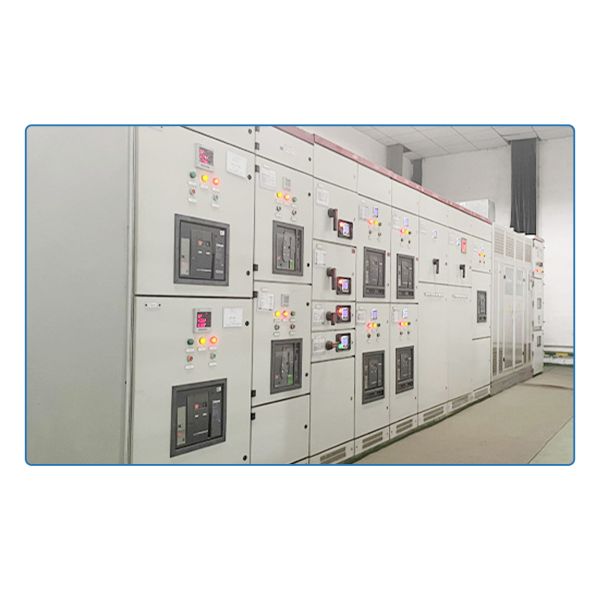

Product Description
The low-voltage switchgear system adopts a design that isolates power and control cables, facilitating safe operation by staff. The pull-out drawers are equipped with intelligent sensors that can measure current, voltage, and primary insertion temperature.
Insulation Conduit Wiring Method for Auxiliary Circuits: Use wire wrapping tubes to bundle the insulation conduits ■ Use straps.
for fixation ■ Use line troughs for fixation □
Operating Mode of the Switch Cabinet: Manual ■ Electric ■
Installation Mode of the Switch Cabinet: Fixed installation ■ Suspended installation □ Embedded installation □
Installation Location of the Switch Cabinet: Indoor ■ Outdoor □
Material of the Switch Cabinet: Metal ■ Non-metal □ (Others □)
Thickness of the Switch Cabinet Material: Frame 2.0mm, Front door panel 1.5mm, Rear door panel 1.2mm, Side panel 1.0mm.
Electrical Connection Mode of the Functional Unit: Incoming Line Cabinet FFF, Feeder Cabinet FF (without auxiliary circuits), Control Cabinet WWW.
Electrical connection type of the main incoming circuit, the second letter indicates: Electrical connection type of the main outgoing circuit, the third letter indicates: Electrical connection type of the auxiliary circuit.
Note: F - Fixed connection, D - Separable connection, W - Withdrawable connection.)
Cautionary Notice
All the products are custom-made. Before placing the order, please communicate in detail with the customer service about your
specific requirements (such as specifications, parameters, functions, etc.). We will provide an exclusive solution based on your
needs and confirm the price. The production cycle of custom-made products depends on the complexity of the order. Thank you for
your understanding and cooperation!
|
3.1 Switching electrical appliances and enclosures (model specifications / material names)
|
|
Number
|
Component name
|
Type specification
|
Quantity
|
|
1
|
air circuit breaker (ACB)
|
HZLW1-2000/3 1600A
|
1
|
|
Icu: 80kA；Ics: 50kA
|
|
|
2
|
Enclosed knife switch
|
HD13-2000/30BX 2000A
|
1
|
|
3
|
Boby case
|
GGD case (Frame 2.0mm; Front door panel thickness 1.2mm; Rear door panel thickness 1.0mm; Side panel material thickness: 1.0mm)
|
1
|
|
3.2 Busbars and Insulated Conductors (Material Name, Model Specification)
|
|
Number
|
Component name
|
name of the material
|
Type
|
|
1
|
Breaker incoming and outgoing lines
|
Copper strip (bare copper)
|
TMY - 2×(10mm×60mm)
|
|
2
|
horizontal bus
|
TMY - 10mm×100mm
|
|
3
|
Busbar (PE)
|
TMY - 10mm×60mm
|
|
4
|
Busbar (N)
|
TMY - 10mm×60mm
|
|
3.3 Insulation support components and related connecting parts (material name, model specification)
|
|
Number
|
Component name
|
name of the material
|
Type
|
|
1
|
Insulation support component
|
PPO bus-bar clamp
|
10mm×100mm
|
|
DMC insulator
|
M8
|
|
Epoxy glass fiber cloth insulation board
|
thickness 1.0mm
|
